CompactDry
Chromogenic culture media for Microbial Testing
CompactDry products are ready-to-use dehydrated chromogenic media plates for minimised testing time and improved quality assurance and control processes. This includes selective growth and colouration for rapid and efficient species identification and enumeration.
Used to test:
- Raw materials – food and drinks,
- Processed food stuffs – food, drinks, ready meals,
- Cosmetics
- Environmental – test preparative surfaces using CompactDry Swab.
CompactDry has structural rigidity for safe and secure handling and stacking. The sealed lid allows 3-dimentional growth and minimises the risk of cross-contamination and spillage.
Heterotrophic bacteria in water

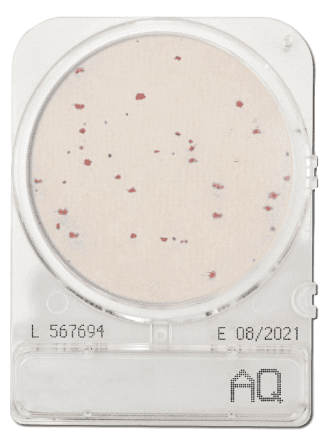

CompactDry AQ
CompactDry AQ for water heterotrophic bacteria.
CompactDry AQ plates contains a chromogenic nutrient poor medium for determining the colony count of heterotrophic organisms in treated drinking water and ultra-pure water.
Colonies are almost all red. Yeast tends to grow as white-pink colonies. Moulds grow as a typical 3-dimensional cotton wool form.
Heterotrophic bacteria in water
CompactDry AQ
View product
CompactDry AQ for water heterotrophic bacteria.
CompactDry AQ plates contains a chromogenic nutrient poor medium for determining the colony count of heterotrophic organisms in treated drinking water and ultra-pure water.
Colonies are almost all red. Yeast tends to grow as white-pink colonies. Moulds grow as a typical 3-dimensional cotton wool form.
Bacillus cereus

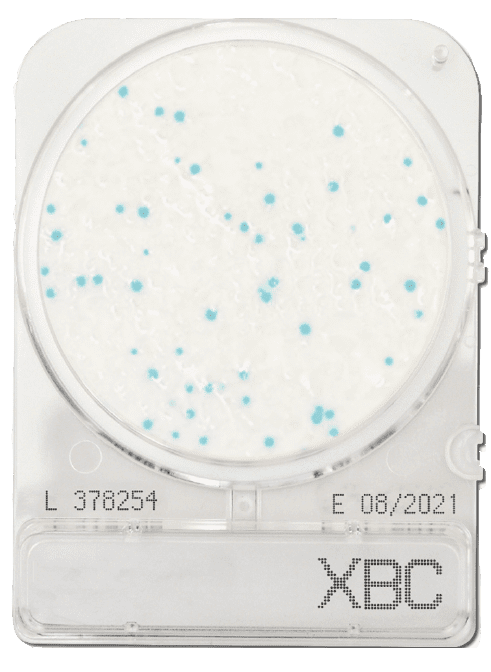

CompactDry BC (X-BC)
CompactDry X-BC for Bacillus cereus
CompactDry X-BC combines the properties of chromogenic dry media and gel contact plates. It is used for the quantitative detection of Bacillus cereus in food samples. Bacillus cereus forms light blue to blue colonies.
Bacillus cereus
CompactDry BC (X-BC)
View product
CompactDry X-BC for Bacillus cereus
CompactDry X-BC combines the properties of chromogenic dry media and gel contact plates. It is used for the quantitative detection of Bacillus cereus in food samples. Bacillus cereus forms light blue to blue colonies.
Coliforms

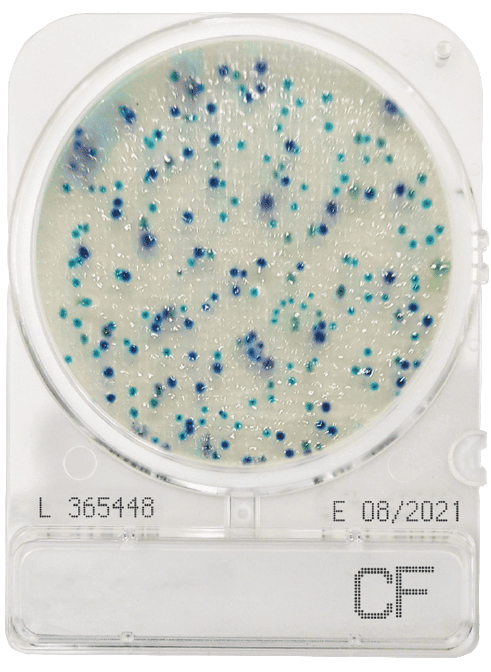

CompactDry CF
CompactDry CF for coliform.
CompactDry CF is an easy tool for the detection of coliform bacteria. The media contains the chromogenic enzyme substrate X-Gal and coliforms colonies are coloured blue/blue green. The growth of other bacterial types (genius) is mostly inhibited but in certain instances may form colourless colonies.
Coliforms
CompactDry CF
View product
CompactDry CF for coliform.
CompactDry CF is an easy tool for the detection of coliform bacteria. The media contains the chromogenic enzyme substrate X-Gal and coliforms colonies are coloured blue/blue green. The growth of other bacterial types (genius) is mostly inhibited but in certain instances may form colourless colonies.

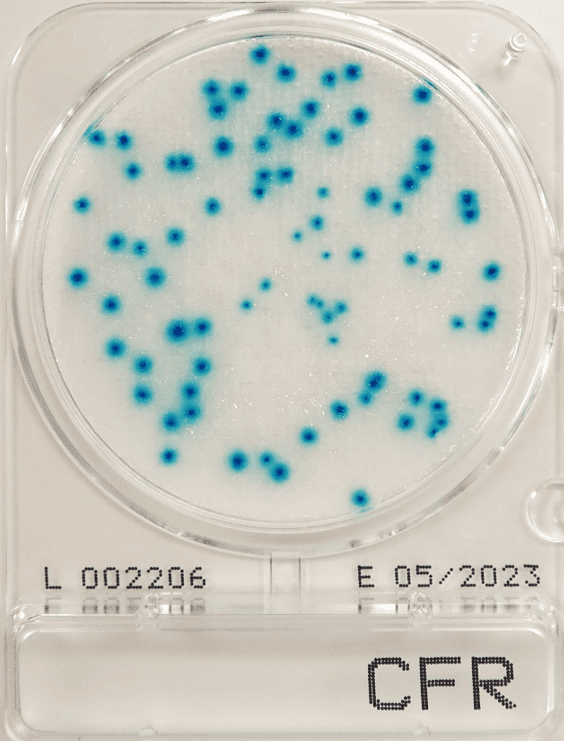

Rapid coliforms in raw and pasteurized dairy products
CompactDry CFR
CompactDry CFR for coliforms in raw dairy products and heat processed dairy products.
CompactDry CFR enables easy culture and enumeration of coliforms in dairy products. CompactDry CFR selective media contains the chromogenic enzyme substrate X-Gal which result in a blue to blue/green colonies.
Rapid coliforms in raw and pasteurized dairy products
CompactDry CFR
View product
CompactDry CFR for coliforms in raw dairy products and heat processed dairy products.
CompactDry CFR enables easy culture and enumeration of coliforms in dairy products. CompactDry CFR selective media contains the chromogenic enzyme substrate X-Gal which result in a blue to blue/green colonies.

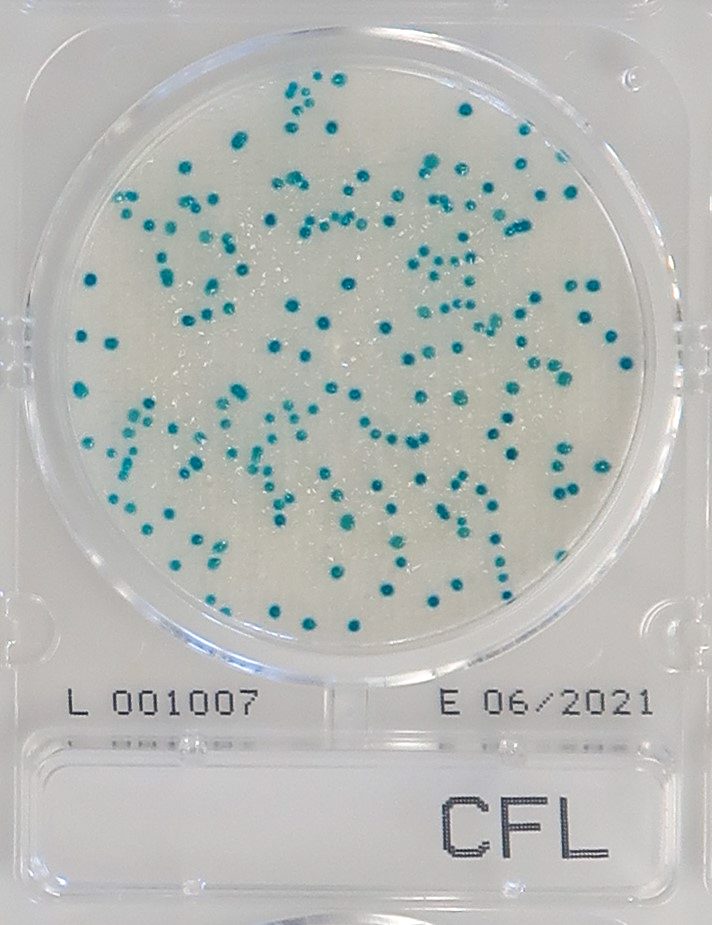

Coliforms in dairy products
CompactDry CF-L
CompactDry CF-L to test for coliforms in dairy products.
Coliforms are gram-negative, facultative anaerobic, non-spore forming bacteria and commonly found in animal intestines and soil. The term “coliform” refers to enteric bacteria found in foodstuff such as meat, shellfish, dairy products, other foods and in particular, water. Bacteria such as Shigella, Salmonella, Yersinia, Citrobacter, Klebsiella, and Enterobacter are all coliforms, but the most recognized coliform is Escherichia coli.
Testing for the presence of coliform is important in the food industry, particularly in dairy production.
Coliforms in dairy products
CompactDry CF-L
View product
CompactDry CF-L to test for coliforms in dairy products.
Coliforms are gram-negative, facultative anaerobic, non-spore forming bacteria and commonly found in animal intestines and soil. The term “coliform” refers to enteric bacteria found in foodstuff such as meat, shellfish, dairy products, other foods and in particular, water. Bacteria such as Shigella, Salmonella, Yersinia, Citrobacter, Klebsiella, and Enterobacter are all coliforms, but the most recognized coliform is Escherichia coli.
Testing for the presence of coliform is important in the food industry, particularly in dairy production.

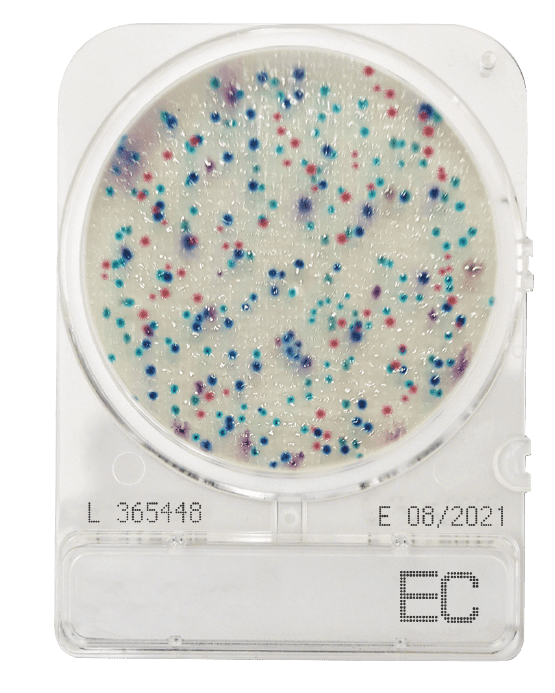

Escherichia coli and coliforms
CompactDry EC
CompactDry EC for Escherichia coli and coliform.
CompactDry EC is a medium to detect E. coli and coliform bacteria. The medium contains two different chromogenic enzyme substrates: Magenta-Gal and X-Gluc. E.coli forms blue colonies. Red and blue colonies counted together provides the total coliform number.
Escherichia coli and coliforms
CompactDry EC
View product
CompactDry EC for Escherichia coli and coliform.
CompactDry EC is a medium to detect E. coli and coliform bacteria. The medium contains two different chromogenic enzyme substrates: Magenta-Gal and X-Gluc. E.coli forms blue colonies. Red and blue colonies counted together provides the total coliform number.

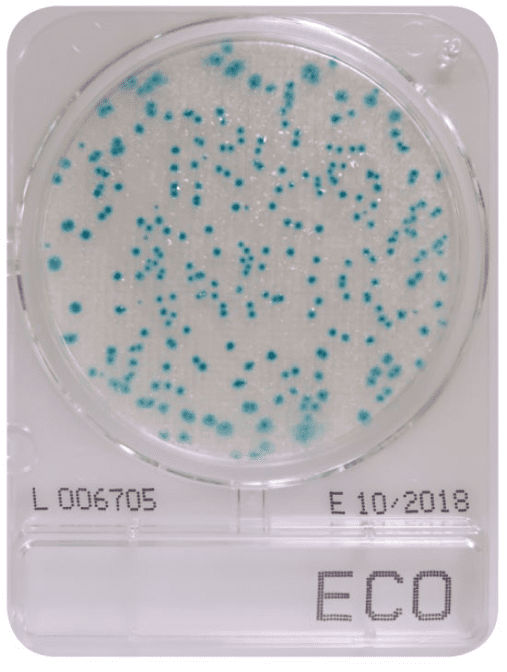

Escherichia coli
CompactDry ECO
CompactDry ECO is a dehydrated medium plate used to detect E. coli in food and beverages.
E. coli is a bacterium that is commonly found in the gut of humans and warm-blooded animals.
The presence of E. coli is an indicator of faecal contamination and possible presence of enteric pathogens in water, seafood, dairy, raw & undercooked ground meat products, and raw vegetables.
Monitoring and identification of E. coli is used at each step of the food production process as a quality control parameter.
Escherichia coli
CompactDry ECO
View product
CompactDry ECO is a dehydrated medium plate used to detect E. coli in food and beverages.
E. coli is a bacterium that is commonly found in the gut of humans and warm-blooded animals.
The presence of E. coli is an indicator of faecal contamination and possible presence of enteric pathogens in water, seafood, dairy, raw & undercooked ground meat products, and raw vegetables.
Monitoring and identification of E. coli is used at each step of the food production process as a quality control parameter.

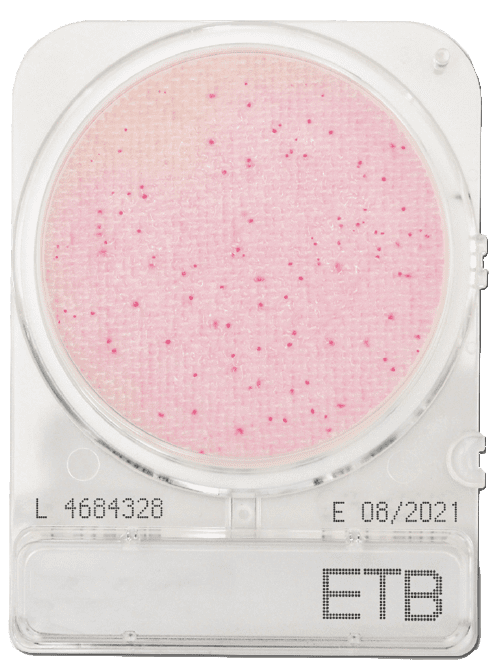

Enterobacteriaceae
CompactDry ETB
CompactDry ETB for Enterobacteriacae
CompactDry ETB is very easy to use system to detect Enterobacteriacae. Its substrates allows the differentiation of the Enterobacteriacae from other groups.
Enterobacteriacae are red/purple coloured. Red/purple coloured colonies plus other coloured colonies together form the total gram negative bacteria count.
Enterobacteriaceae
CompactDry ETB
View product
CompactDry ETB for Enterobacteriacae
CompactDry ETB is very easy to use system to detect Enterobacteriacae. Its substrates allows the differentiation of the Enterobacteriacae from other groups.
Enterobacteriacae are red/purple coloured. Red/purple coloured colonies plus other coloured colonies together form the total gram negative bacteria count.
Enterococci

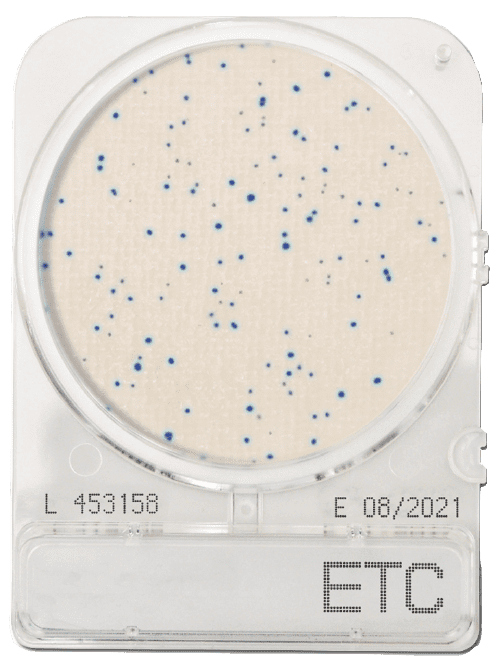

CompactDry ETC
CompactDry ETC for Enterococcus species
The CompactDry ETC is based on the usage of X-glucoside (X-Gluc) and selective antibiotics.
Enterococci β-glucosidase targets X-Gluc and allows the specific detection of enterococci through the formation of blue to blue/green colonies.
Enterococci
CompactDry ETC
View product
CompactDry ETC for Enterococcus species
The CompactDry ETC is based on the usage of X-glucoside (X-Gluc) and selective antibiotics.
Enterococci β-glucosidase targets X-Gluc and allows the specific detection of enterococci through the formation of blue to blue/green colonies.

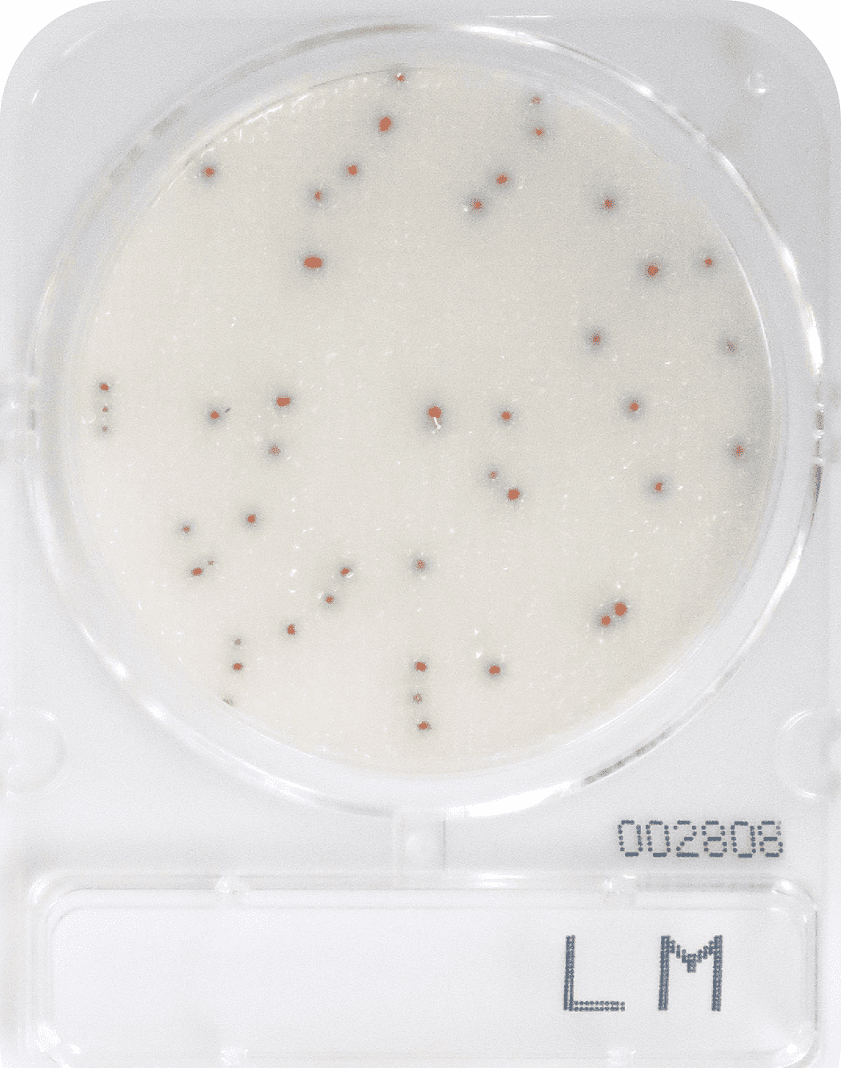

Listeria monocytogenes
CompactDry LM
CompactDry LM is a ready-to-use, chromogenic plate for enumeration and detection of Listeria monocytogenes in food and drinks. Evaluation of surfaces and in working environments using the CompactDry Swab. Detection of Listeria monocytogenes through the combination of selective agents and chromogenic substrates. Listeria monocytogenes form red colonies with a blue halo.
Listeria monocytogenes
CompactDry LM
View product
CompactDry LM is a ready-to-use, chromogenic plate for enumeration and detection of Listeria monocytogenes in food and drinks. Evaluation of surfaces and in working environments using the CompactDry Swab. Detection of Listeria monocytogenes through the combination of selective agents and chromogenic substrates. Listeria monocytogenes form red colonies with a blue halo.

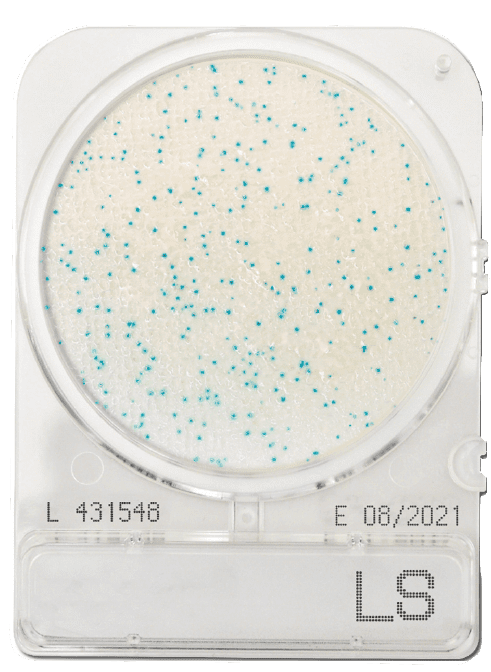

Listeria species
CompactDry LS
CompactDry LS for Listeria species
CompactDry LS is used for the quantitative detection of Listeria in food and drinks. Evaluation of surfaces and in working environments using the CompactDry Swab. Detection of Listeria through the combination of selective agents and chromogenic substrates. Listeria species form light blue/blue colonies.
Listeria species
CompactDry LS
View product
CompactDry LS for Listeria species
CompactDry LS is used for the quantitative detection of Listeria in food and drinks. Evaluation of surfaces and in working environments using the CompactDry Swab. Detection of Listeria through the combination of selective agents and chromogenic substrates. Listeria species form light blue/blue colonies.

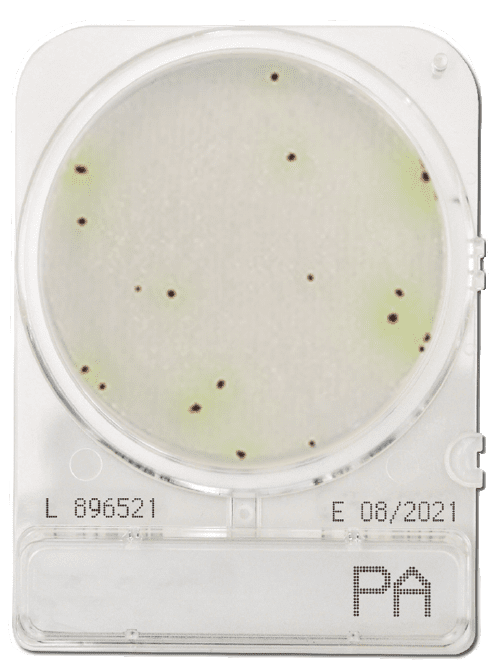

Pseudomonas aeruginosa
CompactDry PA
CompactDry PA for Pseudomonas aeruginosa
CompactDry PA for Quantitative detection of Pseudomonas aeruginosa. P. aeruginosa forms red colonies which are generally surrounded by a greenish-yellow halo.
Pseudomonas aeruginosa
CompactDry PA
View product
CompactDry PA for Pseudomonas aeruginosa
CompactDry PA for Quantitative detection of Pseudomonas aeruginosa. P. aeruginosa forms red colonies which are generally surrounded by a greenish-yellow halo.
Salmonella species

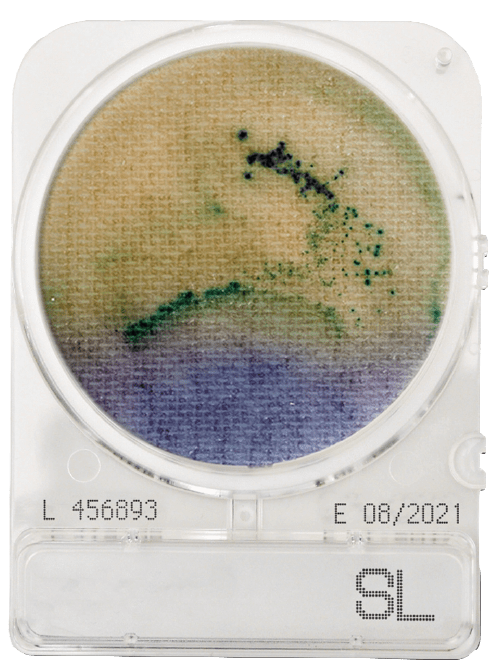

CompactDry SL
CompactDry SL for Salmonella species
CompactDry SL detects Salmonella using 20 – 24 hours pre-enrichment steps.
The plates are based on the combination of different test principles:
- Alkalinisation of the medium, by Salmonella lysine decarboxylase the medium colour will change from blue-purple to yellow. The yellow coloration spreads over the plate due to Salmonella motility.
- Greening of the colony, caused by decomposition of chromogenic substrate with a specific Salmonella enzyme. Black colonies are generated by hydrogen sulphide producing Salmonella.
Salmonella species
CompactDry SL
View product
CompactDry SL for Salmonella species
CompactDry SL detects Salmonella using 20 – 24 hours pre-enrichment steps.
The plates are based on the combination of different test principles:
- Alkalinisation of the medium, by Salmonella lysine decarboxylase the medium colour will change from blue-purple to yellow. The yellow coloration spreads over the plate due to Salmonella motility.
- Greening of the colony, caused by decomposition of chromogenic substrate with a specific Salmonella enzyme. Black colonies are generated by hydrogen sulphide producing Salmonella.

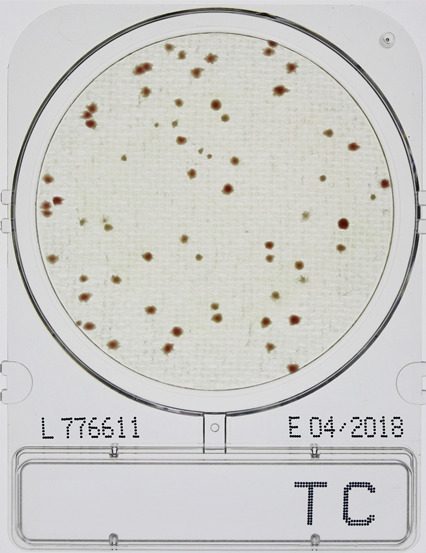

Total Viable Count
CompactDry TC
CompactDry TC for Total count
CompactDry TC is a medium for total viable bacterial count, which contains nutrient standard agar. Bacterial colonies are coloured red on CompactDry TC due to the redox indicator tetrazolium.
Total Viable Count
CompactDry TC
View product
CompactDry TC for Total count
CompactDry TC is a medium for total viable bacterial count, which contains nutrient standard agar. Bacterial colonies are coloured red on CompactDry TC due to the redox indicator tetrazolium.
Rapid Total Viable Count

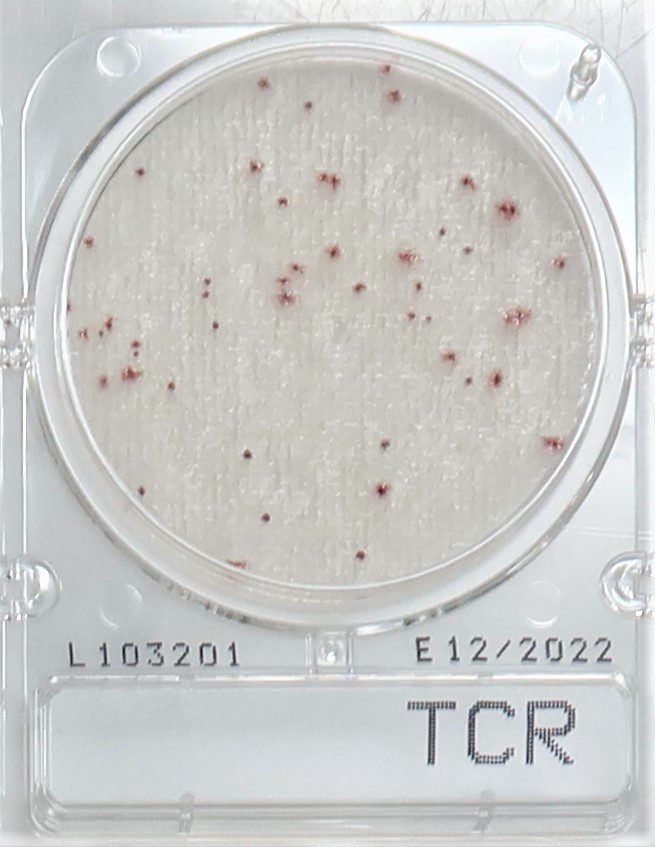

CompactDry TCR
CompactDry TCR for Total Count Rapid
CompactDry TCR (Total Count Rapid) plate is a dehydrated standard nutrient medium plate for total viable bacterial count in food and water.
Bacterial colonies are coloured red due to the triphenyl tetrazolium chloride redox indicator. Colonies are easy to identify and differentiate from possible food residues.
Rapid Total Viable Count
CompactDry TCR
View product
CompactDry TCR for Total Count Rapid
CompactDry TCR (Total Count Rapid) plate is a dehydrated standard nutrient medium plate for total viable bacterial count in food and water.
Bacterial colonies are coloured red due to the triphenyl tetrazolium chloride redox indicator. Colonies are easy to identify and differentiate from possible food residues.
Vibrio parahaemolyticus

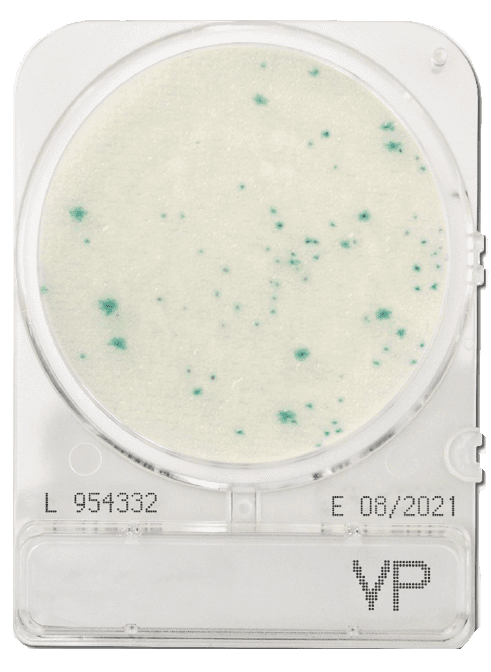

CompactDry VP
CompactDry VP for Vibrio parahaemolyticus
CompactDry VP can easily detect Vibrio parahaemolyticus, but also differentiates Vibrio parahaemolyticus from other vibrio species. The product contains a specific chromogenic substrate for Vibrio parahaemolyticus which develops blue/green or blue colonies, other vibrio species form white colonies.
Vibrio parahaemolyticus
CompactDry VP
View product
CompactDry VP for Vibrio parahaemolyticus
CompactDry VP can easily detect Vibrio parahaemolyticus, but also differentiates Vibrio parahaemolyticus from other vibrio species. The product contains a specific chromogenic substrate for Vibrio parahaemolyticus which develops blue/green or blue colonies, other vibrio species form white colonies.

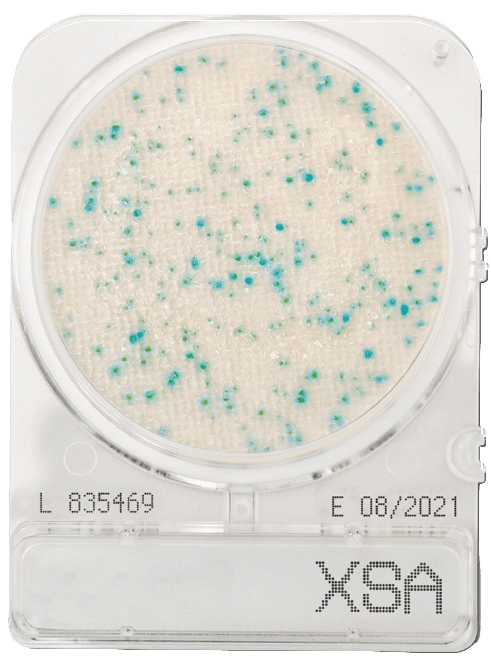

Staphylococcus aureus
CompactDry X-SA
CompactDry X-SA for Staphylococcus aureus
CompactDry X-SA is a medium used to determine Staphylococcus aureus by means of selective growth and differentiation.
Staphylococcus aureus
CompactDry X-SA
View product
CompactDry X-SA for Staphylococcus aureus
CompactDry X-SA is a medium used to determine Staphylococcus aureus by means of selective growth and differentiation.
FAQ
Find the most frequently asked questions about the products in the CompactDry range
The CompactDry dehydrated culture media plate system is easy to use with a very simple 3-step protocol.

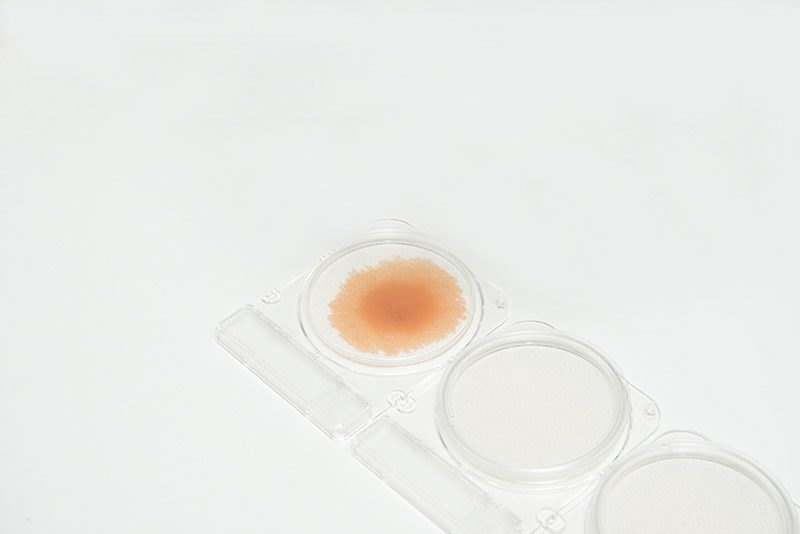

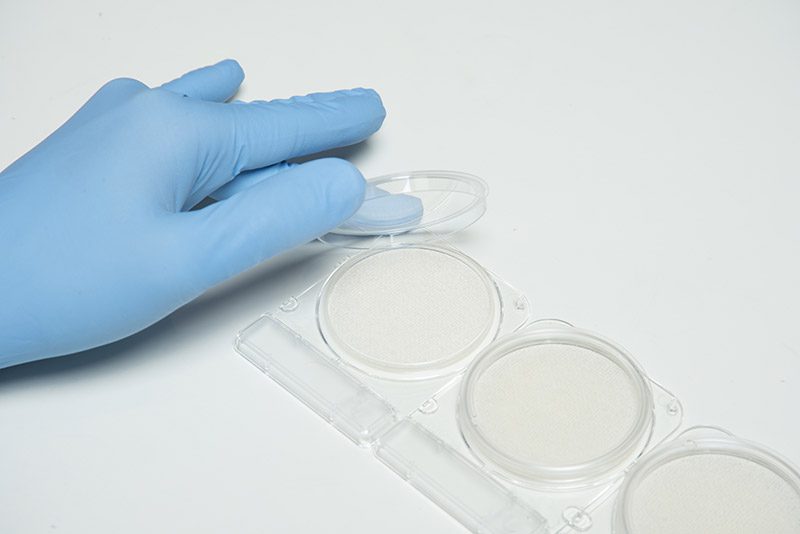

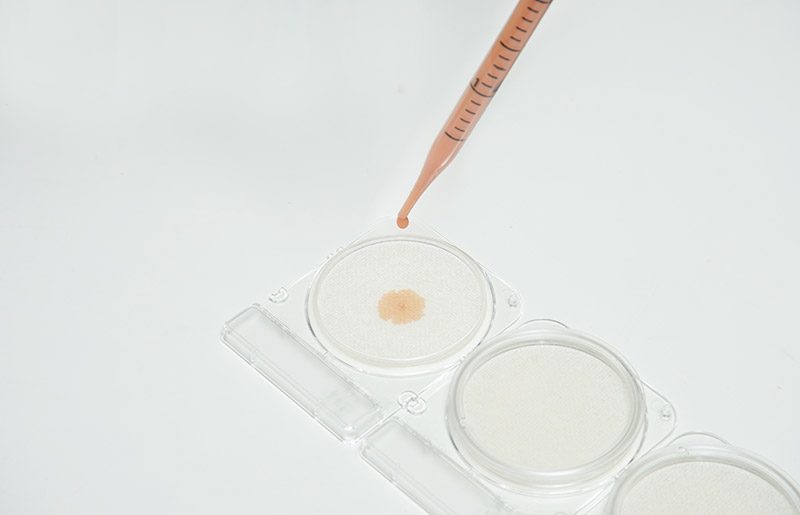

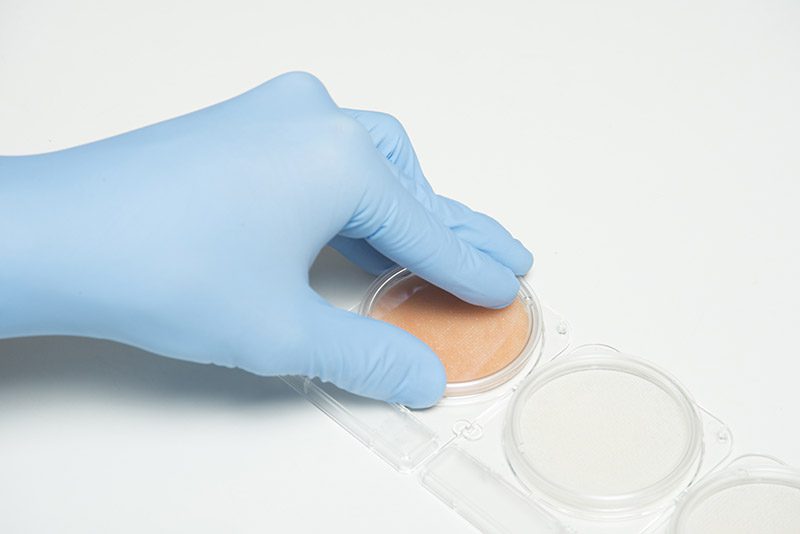

Remove the cap and dispense 1 mL of sample in the middle of the CompactDry plate. The sample diffuses passively and evenly across the dehydrated media sheet, rehydrating the dry medium into a gel within seconds.

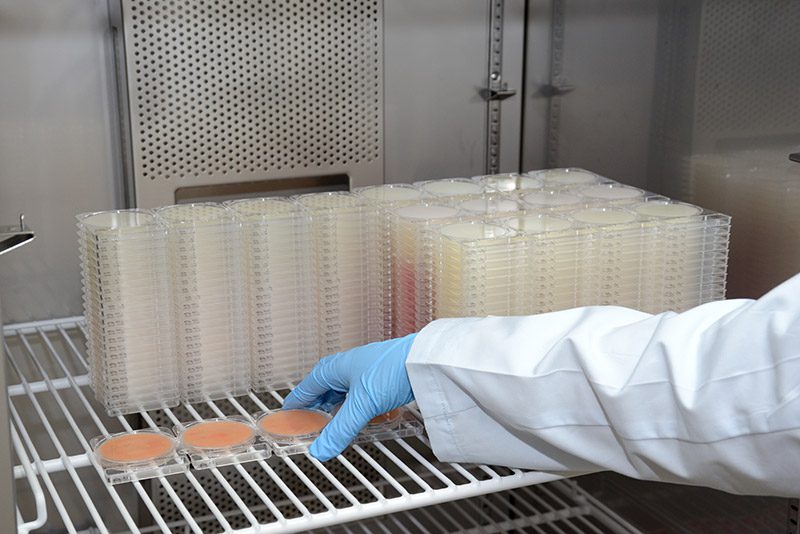

Replace the cap, label, and incubate for the appropriate time and at the required temperature. Following incubation, count the number of coloured microbial colonies.

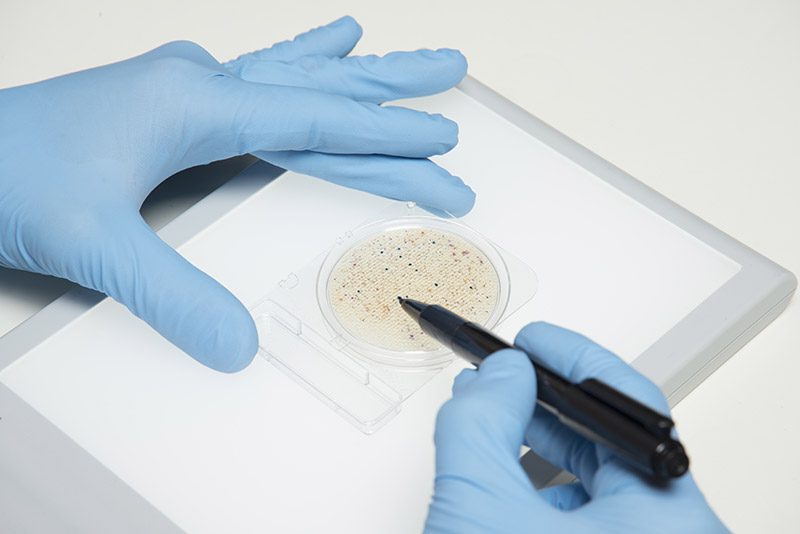

Species characterisation is made easy due to the chromogenic agents colouring specific microbes. Enumeration of coloured colonies can be done manually or using BactLab mobile phone application.
Liquid samples are tested directly or by using the filter method. Solid and processed foodstuffs are tested using samples prepared in a Stomacher or alternative food homogeniser.
Testing foodstuffs using CompactDry growth media requires basic laboratory equipment – pipettes, a microbiological handling area, and an incubator.
Because the CompactDry range is made up of dehydrated chromogenic media, it is very stable and can be stored at room temperature. It has a shelf life of between 16 and 24 months.
Yes, CompactDry plates can be used to test all types of foodstuffs and beverages; solid food samples need to be diluted in the appropriate buffer and homogenised. Then, 1 mL of homogenised sample can be applied directly onto CompactDry plates.
Yes, CompactDry dehydrated growth media plates are suitable for the membrane filtration method.
After liquid filtration, the 47 mm filter is deposited directly onto a re-hydrated CompactDry plate with 1 mL of buffer.
Most CompactDry plates have been certified by AOAC, MicroVal and NordVal using ISO method. Details of ISO methods used during validation can be obtained on request at support@diagnostics-eu.shimadzu.com
CompactDry products have different temperature and incubation times depending on the microbial target.
Please refer to the product page for further details about experimental conditions (temperature and incubation time)
The CompactDry product range allows the growth and detection of either a bacterial gender (e.g. CompactDry CF, LS, SL) or a specific bacterial species (e.g. CompactDry ECO, LM, PA, VP and X-SA)
CompactDry contains chromogenic culture media to ease the detection and enumeration of specific bacteria.
For each CompactDry, colony colouration is specific to a bacterial gender and/or species to facilitate interpretation.
CompactDry plates are stored at room temperature (up to 30 °C) with a shelf life between 16 and 24 months, depending on the reference.
CompactDry products cover a wide range of microbial contaminants in foodstuffs.
At this time, up to 15 microbial targets can be detected using CompactDry plates.
Yes, some CompactDry plates were developed to specifically detect pathogens in foodstuffs such as Bacillus cereus, Escherichia coli, Listeria monocytogenes, Staphylococcus aureus, Pseudomonas aeruginosa or Vibrio parahaemolyticus.
Yes, CompactDry plates are suitable for environmental testing of surfaces using CompactDry Swabs.
CompactDry plates should be disposed in agreement with local disposal regulations for biohazardous substances.
Water safety can be assessed using CompactDry plates (TC, EC, AQ) in combination with the membrane filtration method.
CompactDry EC detects coliforms and Escherichia coli in foodstuffs, whereas CompactDry ECO detects only Escherichia coli.
Food testing using CompactDry plates requires minimal lab equipment including pipettes, a sterile preparation area, and an incubator (a suitable homogeniser would be required for solid food homogenisation)
CompactDry plates are ready-to-use sterile plates, there is no need for preparation or sterilisation. Dehydrated media allows storage at room temperature and a long shelf life compared to traditional agar plates.
